Universal Quickcenter Safety Flange Set / For Use With 2.90" & 3" Clinch Ring Center

Universal Quickcenter Safety Flange Set / For Use With 2.90" & 3" Clinch Ring Center

$55.00 USD
$55.00 USD
Sale Sold out

SKU:E162600M

Buffing wheel flange safety kit is designed for use with 2.90" center buffing wheels. It features a 4.5" diameter and a deep thread design, ideal for short arbor shafts. CNC machined from custom aluminum, the kit ensures self-centering, eliminating the need for removable or permanent center reducer plates. With a standard 5/8"-11 thread pitch, it mounts directly without the need for an arbor nut. The kit includes two O-rings for centering the back plate, reducing vibration and preventing damage to the center hole. A limited 10-year warranty is provided for peace of mind.

  • Self-Centering Design: Eliminates the need for reducer plates and ensures secure mounting
  • Durable Construction: CNC machined aluminum for long-lasting use
  • Standard Thread Pitch: 5/8"-11 thread pitch for easy installation
  • Includes O-Rings: Prevents vibration and protects the center hole on arbor shafts

Additional Product Info

Description: Quickcenter Safety Flange Set (Universal - Fits 2.9" centering ring).

To use safety flanges, follow these steps:

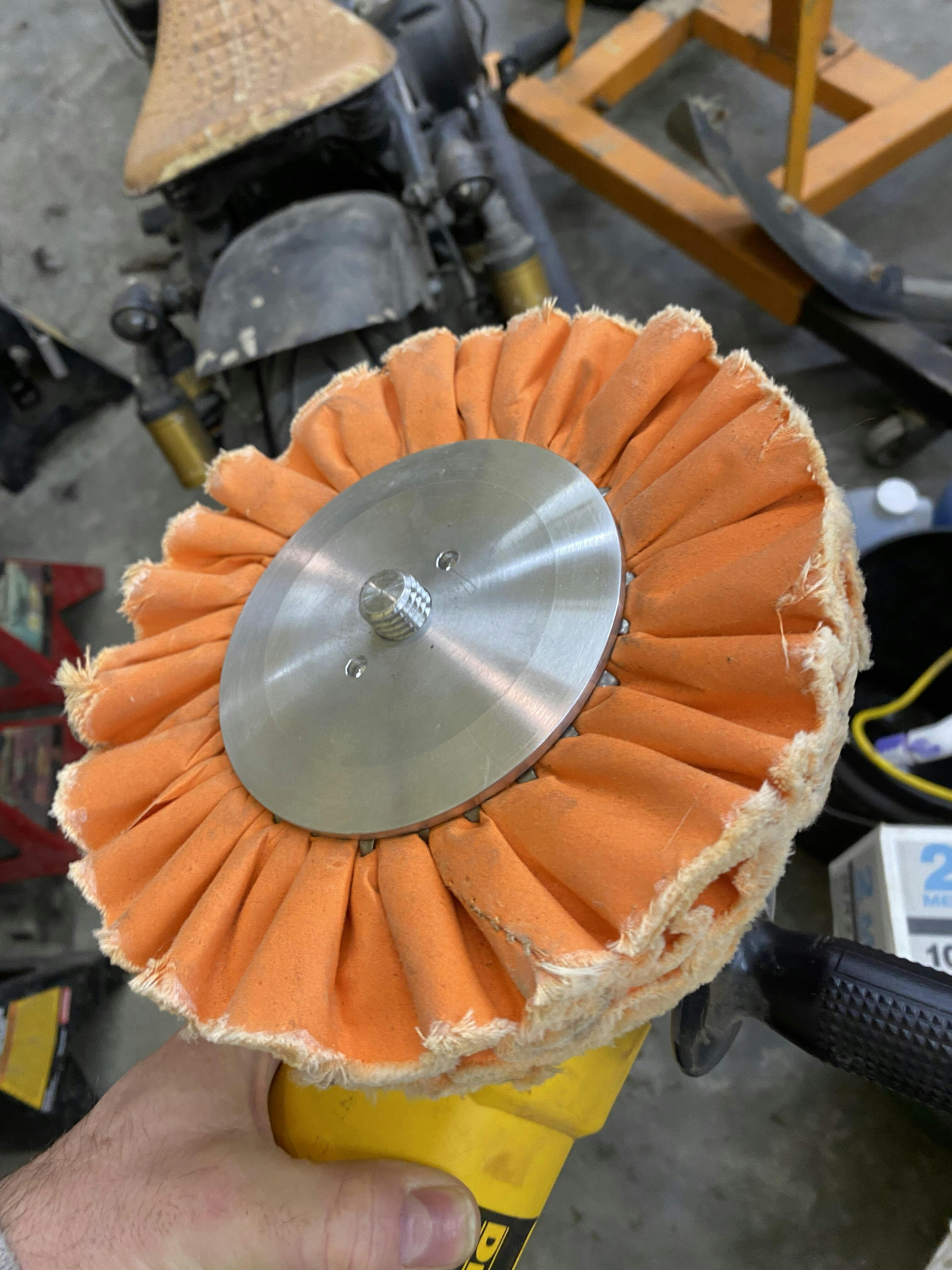

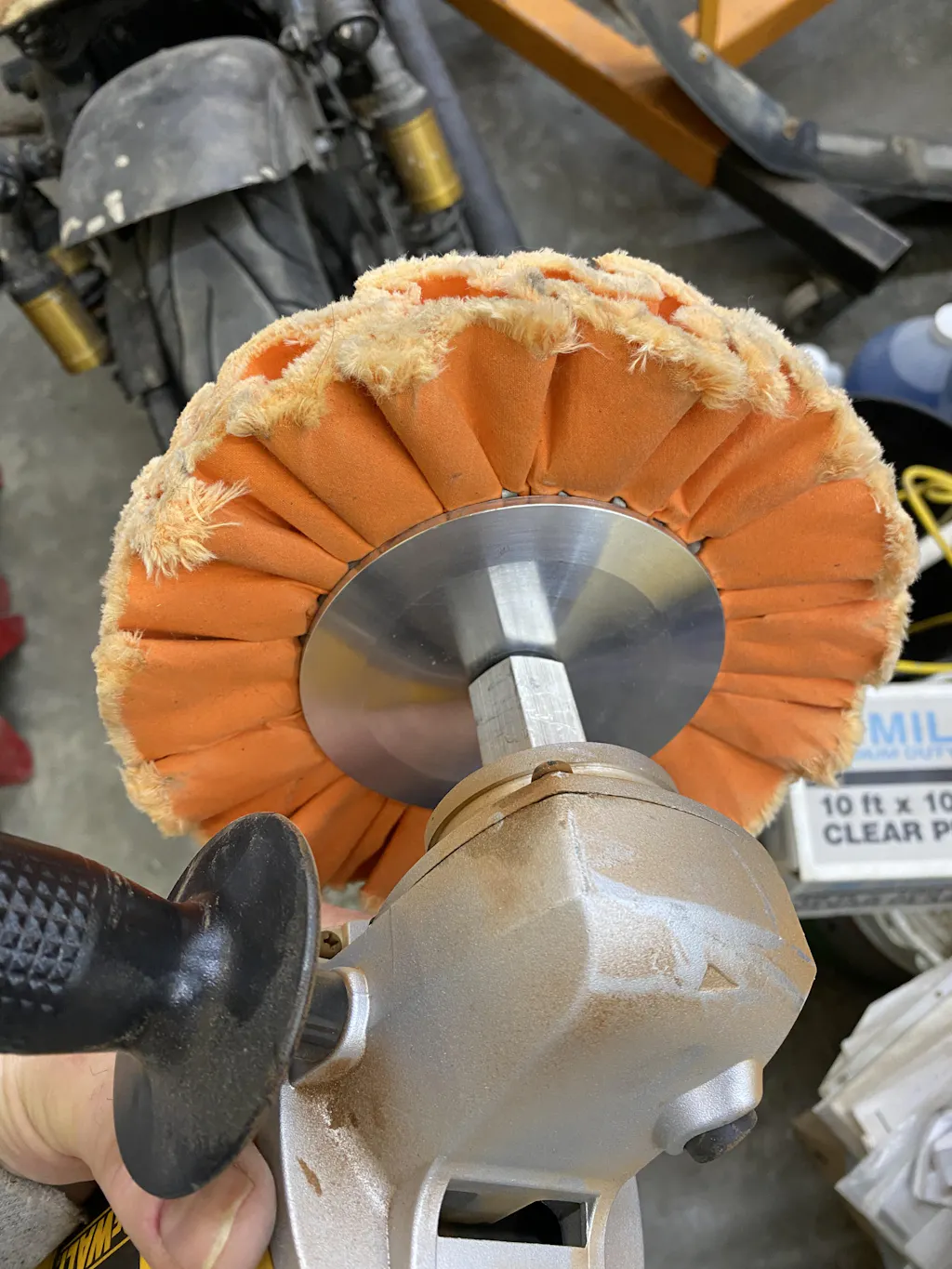

1. Begin by attaching the safety flanges to both sides of your airway buffing wheel. You can do this by placing the  first flange on the shaft of your grinder.

2. Next, place the buffing wheel on top of the flange that is already attached to the shaft.

3. Finally, place the second flange on top of the buffing wheel to complete the attachment.

4. It is important to ensure that the attachments are fastened securely before starting the buffing and cutting process. This will help prevent any accidents or incidents while using the safety flanges.

Typical Application: For mounting and securing a single 2.90” metal center wheel to portable grinders and polishers without the need for a shaft nut or a center reducer plate.

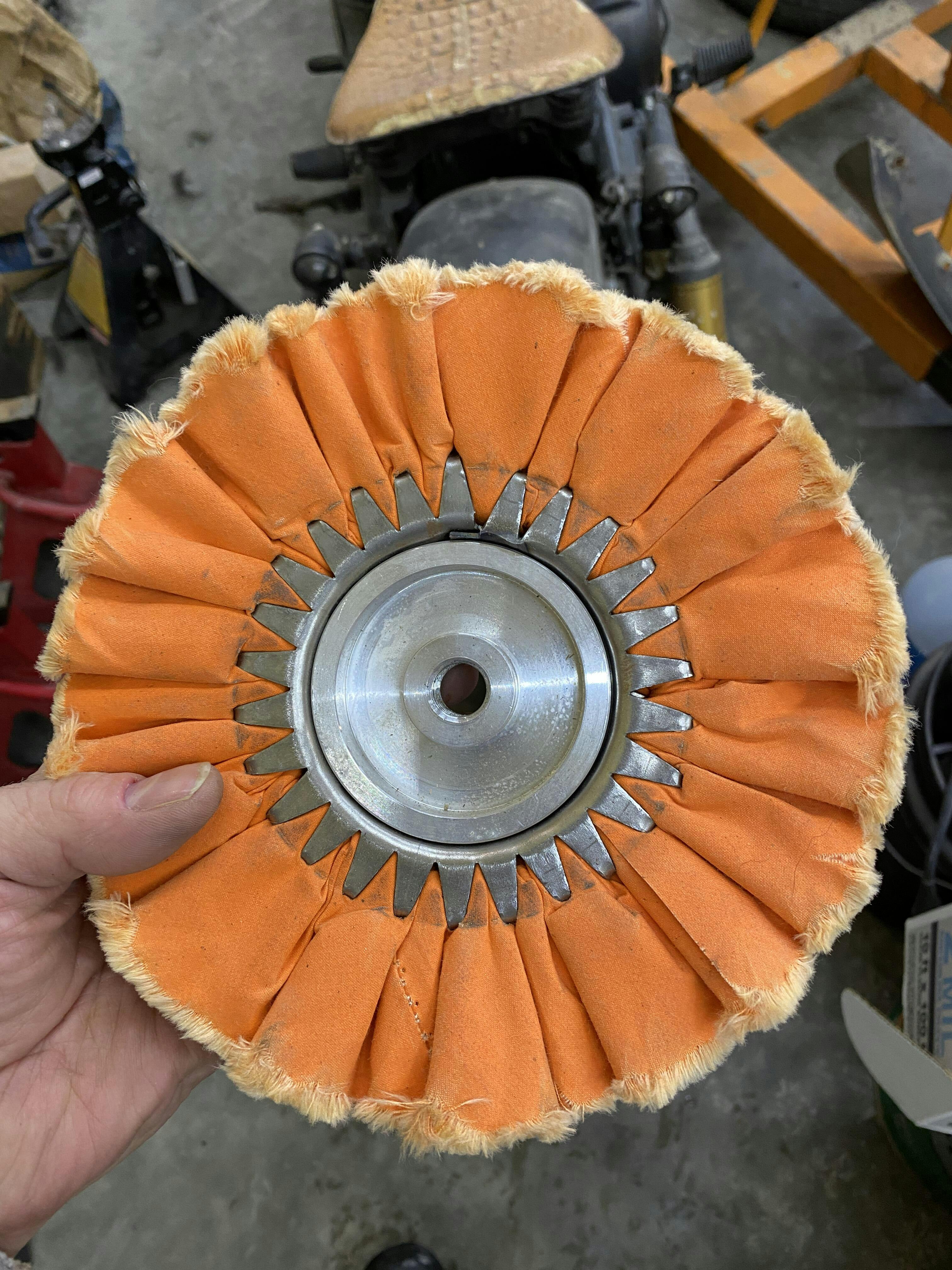

About: Quickcenters were designed as a quick change system when mounting metal center buffing wheels to portable power and air tools with a 5/8”-11 threaded arbor. They are self-centering meaning the inside 2.90” centering ring of the top and/or bottom is designed to fit inside the clinch ring. This allows for tool-less installation, quicker mounts and dismounts, smooth and secure operation, and eliminates the need for a center reducer plate.

Construction: CNC machined from high grade aluminum. Drilled and threaded at 5/8”-11 thread pitch which is standard on most air and power tools.

Precautions: Wear appropriate eyewear during use. Do not overtighten.

Note: Industrial grade. Guaranteed for quality and performance. Limited 10 year warranty.
