Quickcenter X2 Safety Flange Set
Quickcenter X2 Safety Flange Set
SKU: SKU:E162800
Couldn't load pickup availability

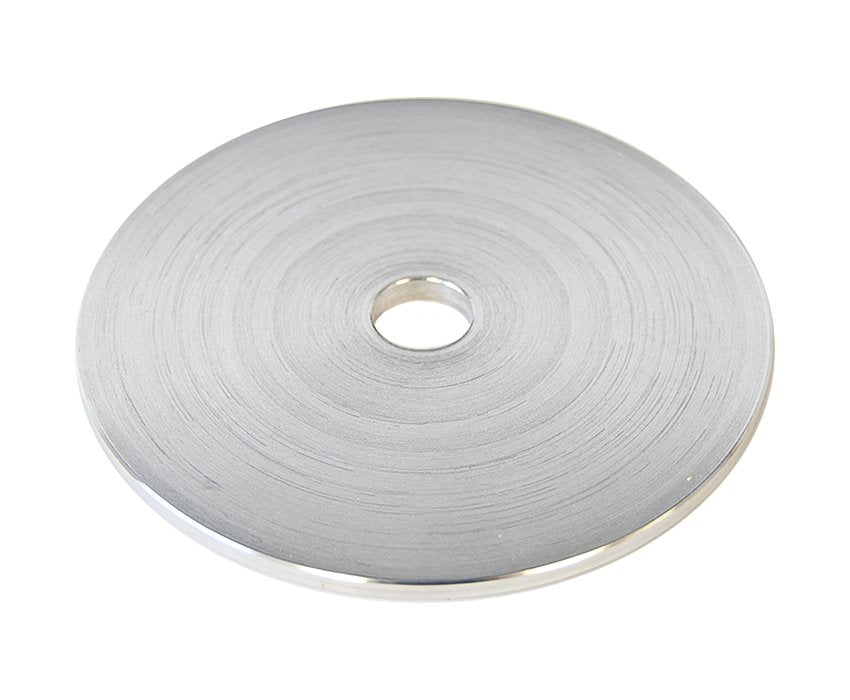

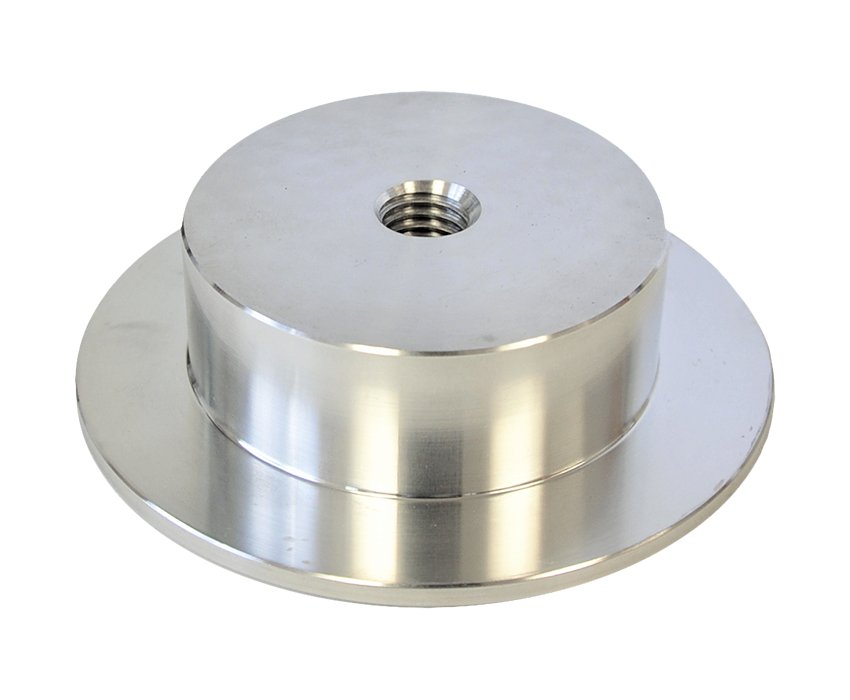

Quickcenter Buffing Wheel Safety Flange Kit is designed for mounting 3" metal center buffing wheels on grinders and polishers. This self-centering flange set simplifies wheel mounting, eliminating the need for removable or permanent center reducer plates. CNC machined from durable aluminum, the flange kit mounts two buffs simultaneously and provides stability and safety during buffing operations. It includes two O-rings to center the back plate on arbor shafts with thread relief, preventing damage to the center hole and reducing or eliminating vibration. The flange has a standard 5/8"-11 thread pitch and mounts directly without the need for an arbor nut.
- Self-Centering Design: Eliminates the need for additional center reducer plates.
- Dual Mounting: Allows mounting of two buffs simultaneously for efficient operation.
- Durable Construction: CNC machined aluminum ensures long-lasting performance.

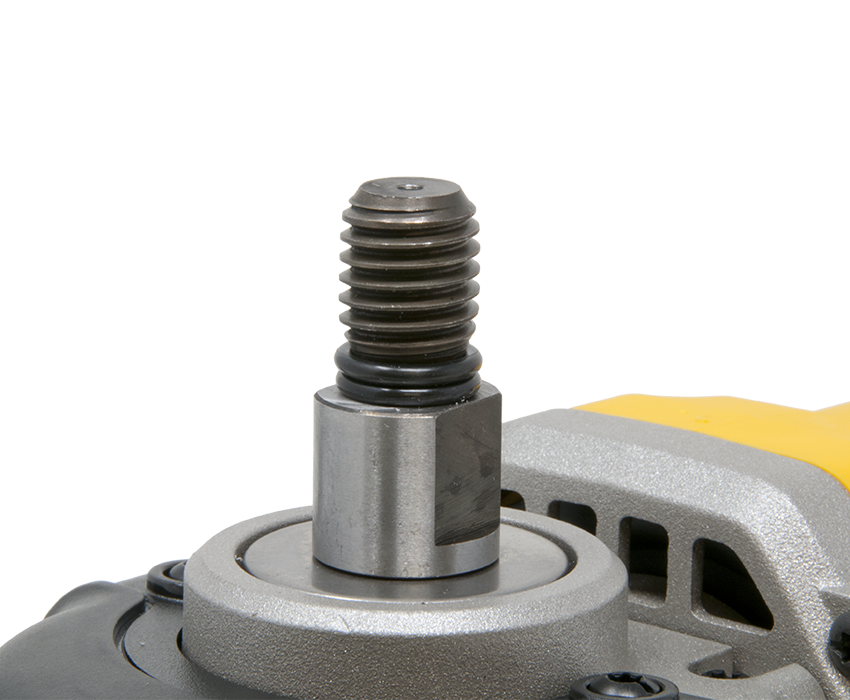

- Vibration Reduction: O-rings help prevent damage to the center hole and reduce vibration.
- Easy to Use: Mounts directly with a standard 5/8"-11 thread pitch and no arbor nut required.
- Safety First: Securely holds buffs in place, reducing risks during polishing.
This safety flange kit is backed by a limited 10-year warranty for your peace of mind.
Additional Product Info
Additional Product Info
Description: Quickcenter Safety Flange Set. (X2)
To use safety flanges, follow these steps:
1. Begin by attaching the safety flanges to both sides of your airway buffing wheel. You can do this by placing the first flange on the shaft of your grinder.
2. Next, place the buffing wheel on top of the flange that is already attached to the shaft.
3. Finally, place the second flange on top of the buffing wheel to complete the attachment.
4. It is important to ensure that the attachments are fastened securely before starting the buffing and cutting process. This will help prevent any accidents or incidents while using the safety flanges.
Typical Application: For mounting and securing two 3” metal center wheels to portable grinders and polishers without the need for a shaft nut or center reducer plates.
About: Quickcenters were designed as a quick change system when mounting metal center buffing wheels to portable power and air tools with a 5/8”-11 threaded arbor. They are self-centering meaning the inside 3” center section of the top and/or bottom is raised to fit inside the clinch ring. This allows for tool-less installation, quicker mounts and dismounts, smooth and secure operation, and eliminates the need for a center reducer plate.
Construction: CNC machined from high grade aluminum. Drilled and threaded at 5/8”-11 thread pitch which is standard on most air and power tools.
Precautions: Wear appropriate eyewear during use. Do not overtighten.
Note: Industrial grade. Guaranteed for quality and performance. Limited 10 year warranty.
