Quickcenter X1F Safety Flange Set
Quickcenter X1F Safety Flange Set
SKU: SKU:E162200
Couldn't load pickup availability

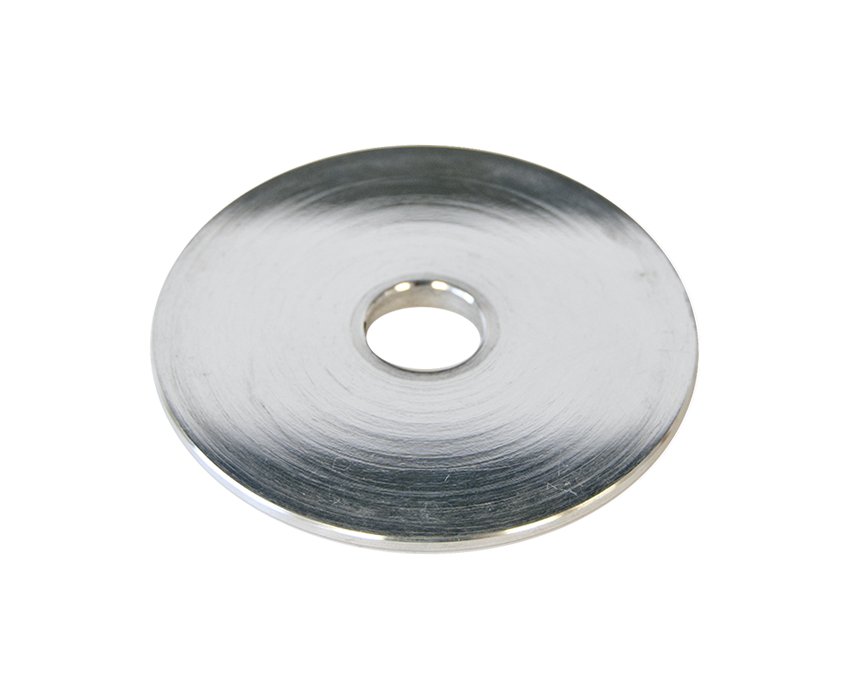

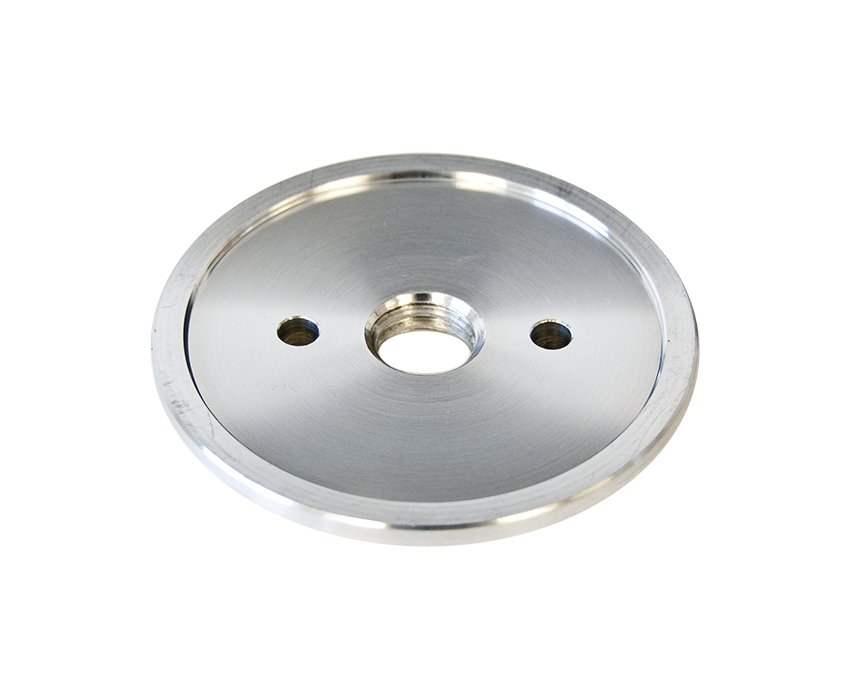

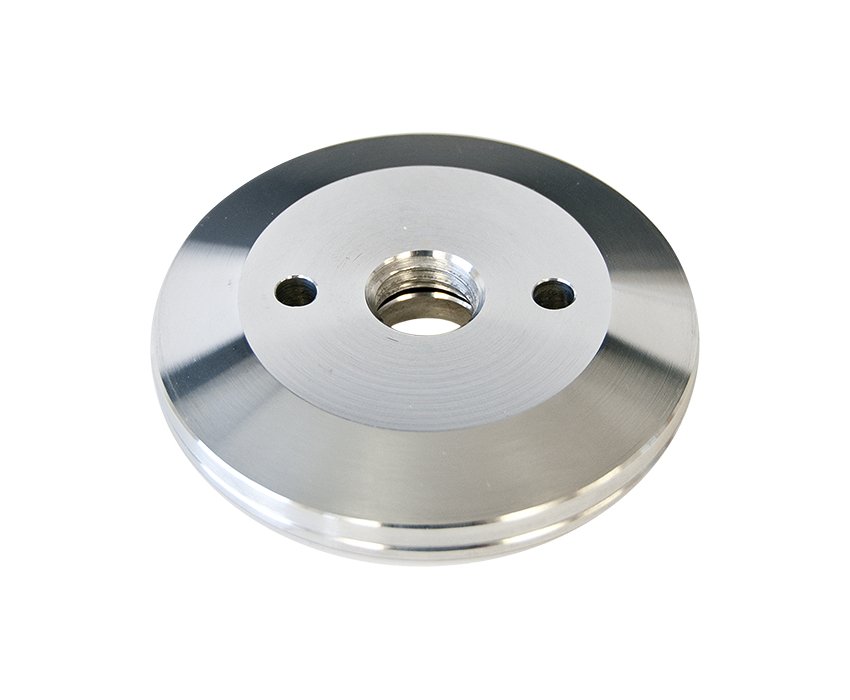

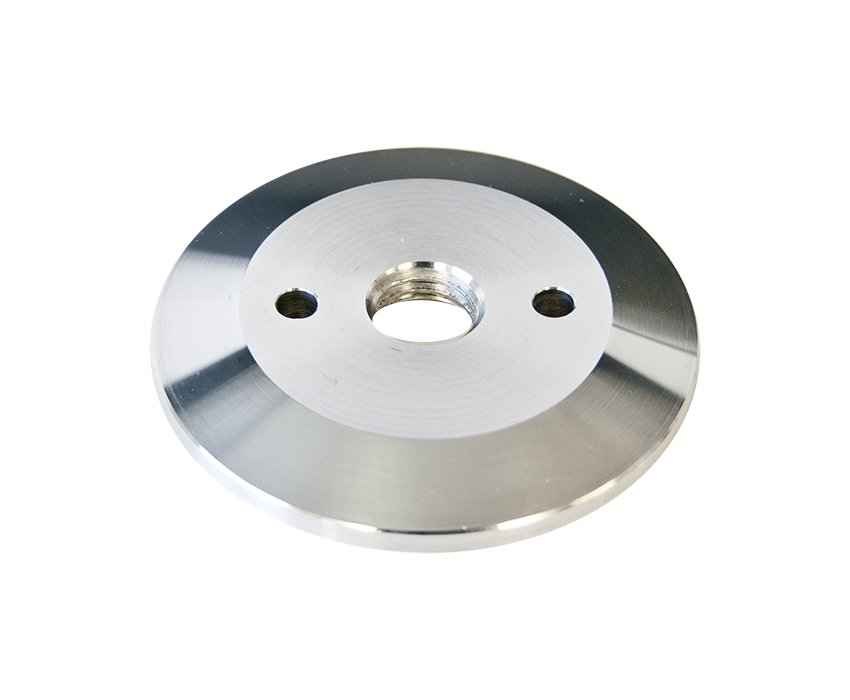

Quickcenter X1F Safety Flange Set is designed for mounting 6" and 8" fiber center buffing wheels on grinders and polishers. This self-centering flange set ensures secure and stable buffing operations while minimizing the risk of accidents. Made from custom CNC machined aluminum, the set features a top plate with an outer step that applies pressure on the cloth without stressing the fiber center. With a standard 5/8"-11 thread pitch, the safety flange mounts directly without the need for an arbor nut.
- Self-Centering Design: Ensures proper wheel alignment for enhanced safety and stability.
- Durable Construction: CNC machined aluminum for long-lasting, reliable performance.
- Compatible with 6" & 8" Buffs: Perfect for use with fiber center buffing wheels on grinders and polishers.
- Ease of Use: No arbor nut required, mounts directly for quicker setups.
- Safety First: Helps prevent accidents by securely holding the buffing wheel in place.
This safety flange set is backed by a limited 10-year warranty, giving you peace of mind during your polishing and buffing tasks.
Additional Product Info
Additional Product Info
Description: Quickcenter Safety Flange Set
To use safety flanges, follow these steps:
1. Begin by attaching the safety flanges to both sides of your airway buffing wheel. You can do this by placing the first flange on the shaft of your grinder.
2. Next, place the buffing wheel on top of the flange that is already attached to the shaft.
3. Finally, place the second flange on top of the buffing wheel to complete the attachment.
4. It is important to ensure that the attachments are fastened securely before starting the buffing and cutting process. This will help prevent any accidents or incidents while using the safety flanges.

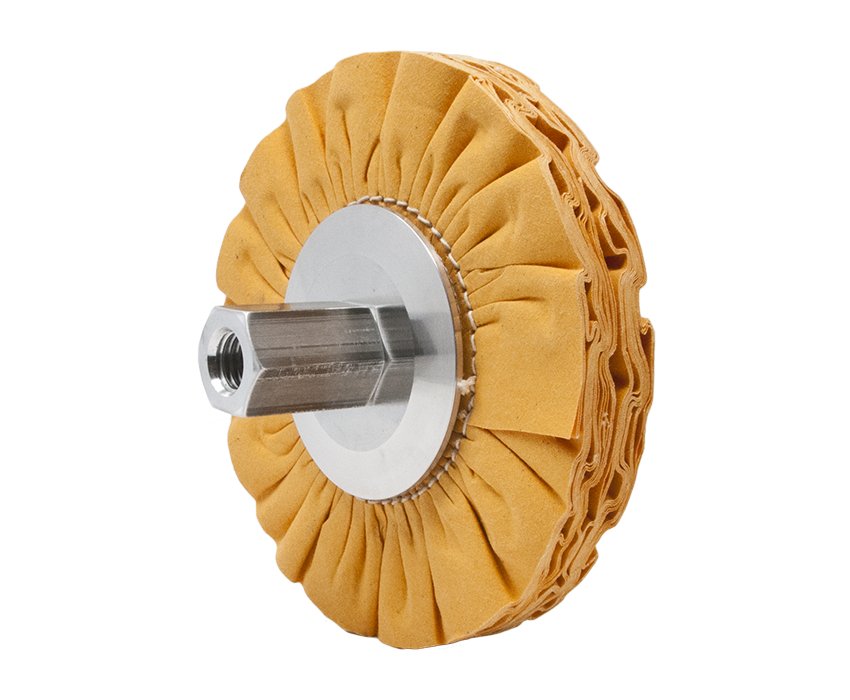

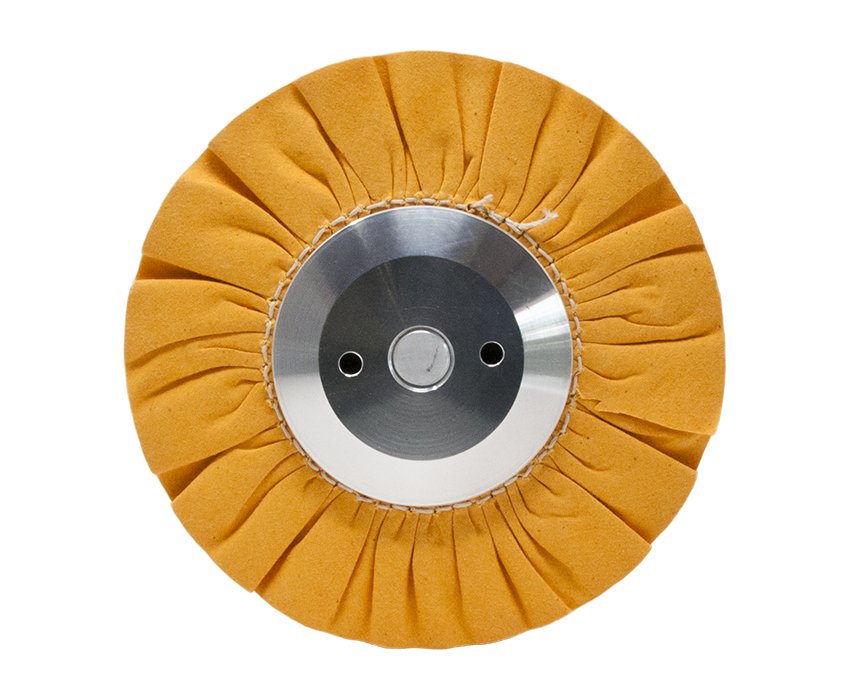

Typical Application: For mounting and securing 6” and 8" diameter fibercenter wheels to portable grinders and polishers without the need for a shaft nut or plate washer.
About: Quickcenters were designed as a quick change system when mounting metal and fiber center buffing wheels to portable power and air tools with a 5/8”-11 threaded arbor. They are self-centering meaning the inside 3” center section of the top and/or bottom is raised to fit inside the clinch ring. This allows for tool-less installation, quicker mounts and dismounts, smooth and secure operation, and eliminates the need for a center reducer plate.
Construction: CNC machined from high grade aluminum. Drilled and threaded at 5/8”-11 thread pitch which is standard on most air and power tools.
Precautions: Wear appropriate eyewear during use. Do not overtighten.
Note: Industrial grade. Guaranteed for quality and performance. Limited 10 year warranty.
