Original Quickcenter Safety Flange Set / For Use With True 3" Clinch Ring Center
Original Quickcenter Safety Flange Set / For Use With True 3" Clinch Ring Center
SKU: SKU:E162600
Couldn't load pickup availability

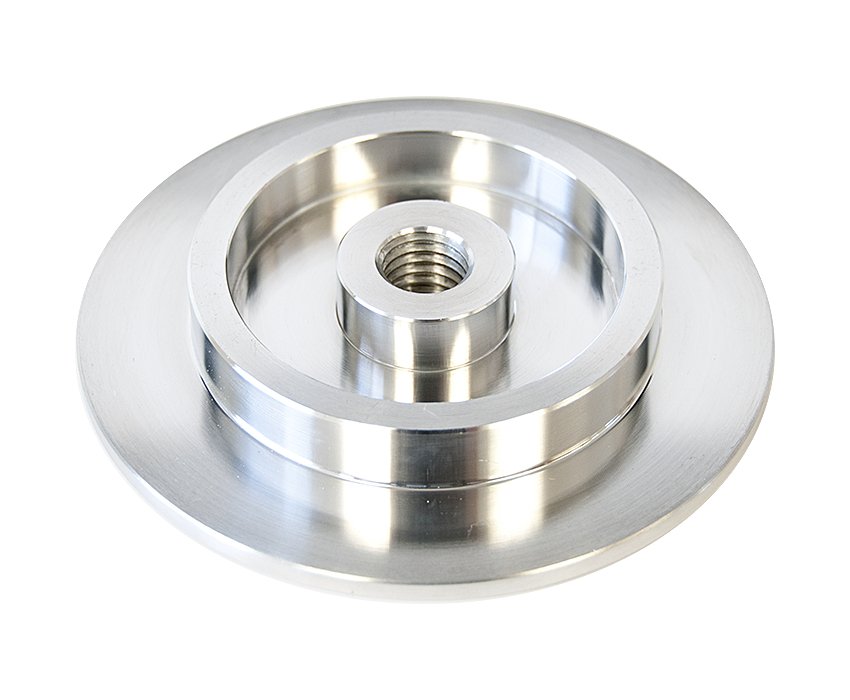

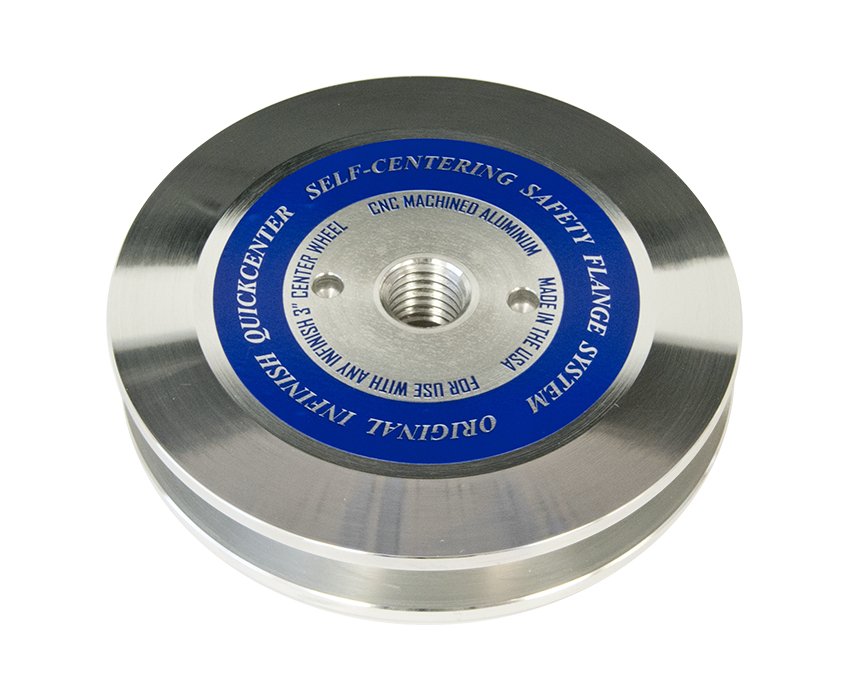

Original Quickcenter Buffing Wheel Safety Flange Set- Designed for use with 3" center buffing wheels. CNC machined from custom aluminum, this self-centering safety flange set ensures a secure and precise fit. It eliminates the need for removable or permanent center reducer plates and mounts directly on grinders and polishers without the need for an arbor nut. With a standard 5/8"-11 thread pitch, the kit includes two O-rings that help center the back plate and reduce vibration, preventing damage to the center hole. The kit is ideal for use with short arbor shafts and comes with a limited 10-year warranty.
- Self-centering design eliminates the need for reducer plates
- CNC machined aluminum for durability and precision
- Includes two O-rings to reduce vibration and prevent damage
- Standard 5/8"-11 thread pitch, mounts without the need for an arbor nut
Additional Product Info
Additional Product Info
Description: Quickcenter Safety Flange Set.

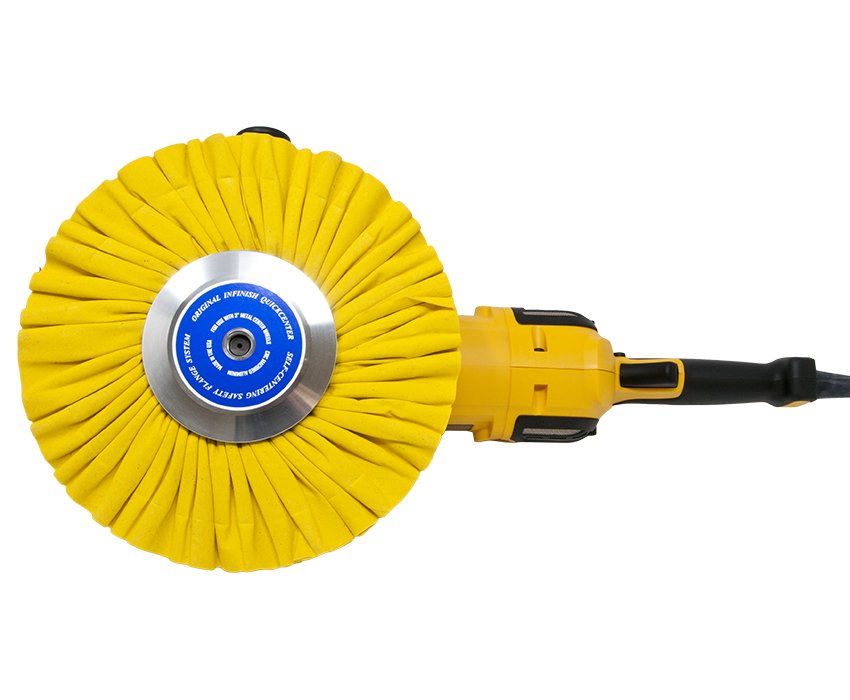

Typical Application: For mounting and securing a single 3” metal center wheel to portable grinders and polishers without the need for a shaft nut or a center reducer plate.
To use safety flanges, follow these steps:
1. Begin by attaching the safety flanges to both sides of your airway buffing wheel. You can do this by placing the first flange on the shaft of your grinder.
2. Next, place the buffing wheel on top of the flange that is already attached to the shaft.
3. Finally, place the second flange on top of the buffing wheel to complete the attachment.
4. It is important to ensure that the attachments are fastened securely before starting the buffing and cutting process. This will help prevent any accidents or incidents while using the safety flanges.
About: Quickcenters were designed as a quick change system when mounting metal center buffing wheels to portable power and air tools with a 5/8”-11 threaded arbor. They are self-centering meaning the inside 3” center section of the top and/or bottom is raised to fit inside the clinch ring. This allows for tool-less installation, quicker mounts and dismounts, smooth and secure operation, and eliminates the need for a center reducer plate.
Construction: CNC machined from high grade aluminum. Drilled and threaded at 5/8”-11 thread pitch which is standard on most air and power tools.
Precautions: Wear appropriate eyewear during use. Do not overtighten.
Note: Industrial grade. Guaranteed for quality and performance. Limited 10 year warranty.
